Anode Rods: The Unsung Hero of Your Hot Water Tank

If you’ve never heard of an anode rod, you’re not alone. Tucked inside nearly every conventional water heater tank, this simple metal rod quietly does one of the most important jobs in your plumbing system: it sacrifices itself so your tank doesn’t have to. Understanding what anode rods do — and how to maintain them — can add years to the life of your water heater and save you the cost of a premature replacement.

What Is an Anode Rod?

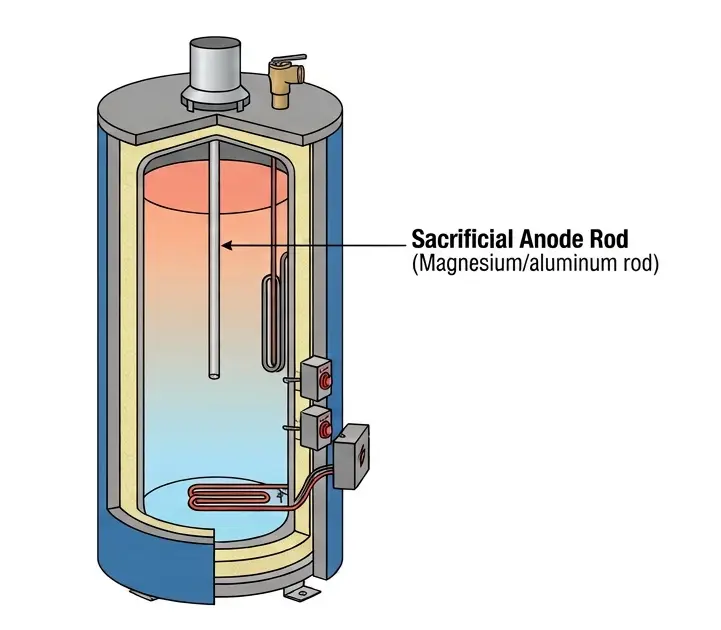

An anode rod is a long metal rod, usually made of magnesium, aluminum, or a zinc-aluminum alloy, wrapped around a steel core wire. It’s installed through a port at the top of the water heater tank and extends down through most of the tank’s interior, fully submerged in water.

Most residential water heaters have a steel tank lined with a thin layer of glass (vitreous enamel) to resist corrosion. But no lining is perfect — tiny gaps, pinholes, and imperfections are inevitable during manufacturing. Without protection, water would begin corroding the exposed steel almost immediately, eventually eating through the tank and causing a leak. That’s where the anode rod comes in.

How Anode Rods Work: Sacrificial Protection

Anode rods work through a process called cathodic protection, based on a fairly simple principle of electrochemistry: when two different metals are submerged in an electrolyte (in this case, water containing dissolved minerals), the more reactive metal will corrode first, protecting the less reactive one.

Magnesium, aluminum, and zinc are all more electrochemically active than the steel used in the tank. So instead of the steel corroding, the anode rod corrodes in its place. Electrons flow from the anode rod to the steel tank, a process that continuously replenishes a protective layer of electrons on the steel surface and halts oxidation there. Over time, the rod itself deteriorates — pitting, thinning, and eventually dissolving away — while the tank stays intact.

This is why anode rods are often called “sacrificial anodes.” They are, quite literally, designed to be consumed so that something more expensive and harder to replace is not.

Types of Anode Rods

Not all anode rods are created equal, and the material matters depending on your water conditions:

• Magnesium rods are the most common and offer the strongest corrosion protection. They’re a good default choice for most households, particularly those with soft water.
• Aluminum rods last longer than magnesium and are less expensive, making them useful in hard water areas where magnesium rods deplete quickly. However, aluminum byproducts have raised some health concerns, so many manufacturers now blend aluminum with zinc.
• Zinc-aluminum rods are often recommended for homes that notice a sulfur or “rotten egg” smell in their hot water. This odor is usually caused by sulfur-reducing bacteria reacting with hydrogen gas released by a magnesium rod; zinc can help suppress the odor-causing reaction.
• Powered (impressed current) anodes are a newer, rod-free alternative that uses a small electrical charge instead of a sacrificial metal. They never need replacing and work well with softened water, though they cost more upfront and require an electrical outlet near the tank.

Signs Your Anode Rod Needs Replacing

Anode rods typically last three to five years, though this varies widely based on water usage, water chemistry, and tank size. Homes with softened water tend to burn through anode rods faster, since the sodium in softened water accelerates the electrochemical reaction.

Watch for these warning signs:

1. Rusty or discolored hot water — a sign the rod has fully deteriorated and the steel tank itself has begun corroding.
2. A rotten egg smell in hot water, often caused by bacterial activity once the rod’s protective effect weakens.
3. The tank is approaching or past 4–5 years old without a known anode replacement.
4. A visible inspection shows the rod is less than about half an inch thick, heavily pitted, or has exposed core wire.

How to Check and Replace an Anode Rod

Checking an anode rod is a manageable DIY task for most homeowners, though it does require some care:

1. Turn off power or gas to the water heater and shut off the cold water supply valve.
2. Drain a few gallons of water from the tank to relieve pressure.
3. Locate the anode rod’s hex head, usually on top of the tank (sometimes hidden under a plastic cap).
4. Loosen the rod with a 1-1/16 inch socket wrench. This can require significant torque, especially on older rods — a breaker bar or impact wrench often helps.
5. Pull the rod out and inspect it. If more than half the magnesium or aluminum has eroded away, or the core wire is exposed in multiple spots, it’s time to replace it.
6. Install a new rod, wrapping the threads with plumber’s tape before reinserting, and restore power and water.

If your water heater is in a tight space, a flexible or segmented anode rod can make removal easier without needing to tilt the tank or remove ceiling material.

Why This Small Part Matters So Much

A water heater tank itself is essentially a large, expensive piece of coated steel — and once it starts rusting through, there’s no repairing it; the whole unit must be replaced. Anode rods cost between $20 and $50, while a full water heater replacement can run $1,000 or more. Replacing a spent anode rod every few years is one of the cheapest and most effective forms of home maintenance available, often extending a tank’s usable life well beyond its expected 8–12 year lifespan.

Despite its importance, the anode rod is one of the most overlooked components in a home. It sits out of sight, doing its quiet, corrosive work, until the day it’s fully spent and the tank is left exposed. A little regular attention — a quick inspection every couple of years — is all it takes to keep your hot water tank protected and your water heater running well past its expected lifespan. You can count on Milani to provide the best advice on service and maintenance. If you need professional help with your anode rod, give us a call!
